May 5, 2019

Sketching a complex set - I.S.I. Entrance 2019 Subjective Solution Problem 3

[et_pb_section fb_built="1" _builder_version="3.22.4"][et_pb_row _builder_version="3.22.4"][et_pb_column type="4_4" _builder_version="3.22.4"][et_pb_text _builder_version="3.22.4" text_font="Raleway|300|||||||" text_text_color="#ffffff" header_font="Raleway|300|||||||" header_text_color="#e2e2e2" background_color="#0c71c3" border_radii="on|5px|5px|5px|5px" box_shadow_style="preset3" custom_padding="20px|20px|20px|20px"]

Understand the problem

[/et_pb_text][et_pb_text _builder_version="3.22.4" text_font="Raleway||||||||" background_color="#f4f4f4" box_shadow_style="preset2" custom_margin="10px||10px" custom_padding="10px|20px|10px|20px"]

Let \( \Omega = \{ z = x + i y \ \mathbb{C} : |y| \leq 1 \} \). If \( f(z) = z^2 + 2 \) then draw a sketch of $$ f(\Omega ) = \{ f(z) : z \in \Omega \} $$

Justify your answer.

[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row _builder_version="3.22.4"][et_pb_column type="4_4" _builder_version="3.22.4"][et_pb_accordion open_toggle_text_color="#0c71c3" _builder_version="3.22.4" body_font="Raleway||||||||" toggle_font="||||||||" text_orientation="center" custom_margin="10px||10px"][et_pb_accordion_item title="Source of the problem" open="on" _builder_version="3.22.4" title_text_shadow_horizontal_length="0em" title_text_shadow_vertical_length="0em" title_text_shadow_blur_strength="0em" body_text_shadow_horizontal_length="0em" body_text_shadow_vertical_length="0em" body_text_shadow_blur_strength="0em"]

I.S.I. (Indian Statistical Institute, B.Stat, B.Math) Entrance. Subjective Problem 3 from 2019

[/et_pb_accordion_item][et_pb_accordion_item title="Topic" open="off" _builder_version="3.22.4" title_text_shadow_horizontal_length="0em" title_text_shadow_vertical_length="0em" title_text_shadow_blur_strength="0em" body_text_shadow_horizontal_length="0em" body_text_shadow_vertical_length="0em" body_text_shadow_blur_strength="0em"]

Complex Numbers, Level Curves

[/et_pb_accordion_item][et_pb_accordion_item title="Difficulty Level" open="off" _builder_version="3.22.4" title_text_shadow_horizontal_length="0em" title_text_shadow_vertical_length="0em" title_text_shadow_blur_strength="0em" body_text_shadow_horizontal_length="0em" body_text_shadow_vertical_length="0em" body_text_shadow_blur_strength="0em"]

5 out 10

[/et_pb_accordion_item][et_pb_accordion_item title="Suggested Book" open="off" _builder_version="3.22.4" title_text_shadow_horizontal_length="0em" title_text_shadow_vertical_length="0em" title_text_shadow_blur_strength="0em" body_text_shadow_horizontal_length="0em" body_text_shadow_vertical_length="0em" body_text_shadow_blur_strength="0em"]

Complex Numbers from A to Z by Titu Andreescu

[/et_pb_accordion_item][/et_pb_accordion][et_pb_text _builder_version="3.22.4" text_font="Raleway|300|||||||" text_text_color="#ffffff" header_font="Raleway|300|||||||" header_text_color="#e2e2e2" background_color="#0c71c3" border_radii="on|5px|5px|5px|5px" box_shadow_style="preset3" custom_margin="48px||48px" custom_padding="20px|20px|20px|20px"]

Start with hints

[/et_pb_text][et_pb_tabs active_tab_background_color="#0c71c3" inactive_tab_background_color="#000000" _builder_version="3.22.4" tab_font="||||||||" tab_text_color="#ffffff" background_color="#ffffff"][et_pb_tab title="Hint 0" _builder_version="3.22.4"]

Do you really need a hint? Try it first!

[/et_pb_tab][et_pb_tab title="Hint 1" _builder_version="3.22.4"]

Understand that the map is from x-y plane to u-v plane. (That is the input of the function is from a two-dimensional place and out put is also in 'another' two-dimensional plane.

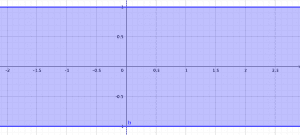

The domain includes all points (x, y) such that \( -1 \leq y \leq 1 \). Here is a picture of the domain.

Domain of f(z)

[/et_pb_tab][et_pb_tab title="Hint 2" _builder_version="3.22.4"]

We know that $$ f(z) = z^2 + 2 $$

Start with z = x + iy.

Then \( f(z) = (x + i y)^2 + 2 = x^2 - y^2 + 2 + 2xy i \)

Hence in the output space:

\( u = x^2 - y^2 + 2 \)

\( v = 2xy \)

[/et_pb_tab][et_pb_tab title="Hint 3" _builder_version="3.22.4"]

Draw level sets. That is, first find what happens at y = 0.

We know that

\( u = x^2 - y^2 + 2 \)

\( v = 2xy \)

Set y = 0 to get

\( u = x^2 + 2 \)

\( v = 0 \)

Hence this is simply the horizontal ray starting at (2, 0) in the u-v plane.

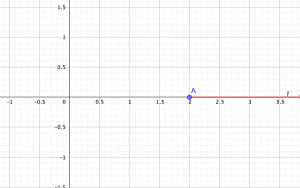

Level set at y = 0

Level set at y = 0

[/et_pb_tab][et_pb_tab title="Hint 4" _builder_version="3.22.4"]

Finally, find the different level curves by setting y = constant (and then varying this constant between -1 and 1)

Since

\( u = x^2 - y^2 + 2 \)

\( v = 2xy \)

Hence \( \frac {v}{2y} = x \)

Replacing in first equation we have

\( u = \frac{v^2}{4y^2} - y^2 + 2 \)

(Notice y is not 0 as we have handled that case previously).

This is a (family of) parabola(s) in the u-v plane with vertex at \( (2 - y^2, 0) \) and opening to the right.

isi entrance 2019 subjective problem 3 solution
