Coincident Nine-point Circles

[et_pb_section fb_built="1" _builder_version="3.22.4"][et_pb_row _builder_version="3.22.4"][et_pb_column type="4_4" _builder_version="3.22.4"][et_pb_text _builder_version="3.22.4" text_font="Raleway|300|||||||" text_text_color="#ffffff" header_font="Raleway|300|||||||" header_text_color="#e2e2e2" background_color="#0c71c3" border_radii="on|5px|5px|5px|5px" box_shadow_style="preset3" custom_padding="20px|20px|20px|20px"]

Understand the problem

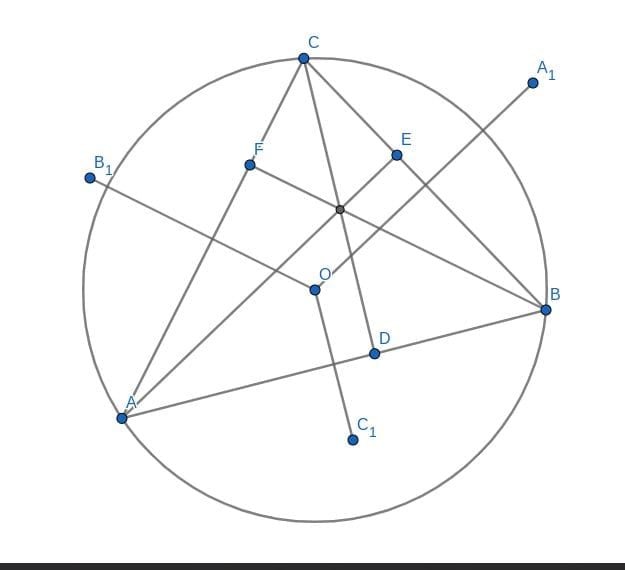

[/et_pb_text][et_pb_text _builder_version="3.22.4" text_font="Raleway||||||||" background_color="#f4f4f4" box_shadow_style="preset2" custom_margin="10px||10px" custom_padding="10px|20px|10px|20px"]Let $ABC$ be a triangle, $O$ its circumcenter, $S$ its centroid, and $H$ its orthocenter. Denote by $A_1, B_1$, and $C_1$ the centers of the circles circumscribed about the triangles $CHB, CHA$, and $AHB$, respectively. Prove that the triangle $ABC$ is congruent to the triangle $A_1B_1C_1$ and that the nine-point circle of $\triangle ABC$ is also the nine-point circle of $\triangle A_1B_1C_1$.

[/et_pb_text][/et_pb_column][/et_pb_row][et_pb_row _builder_version="3.22.4"][et_pb_column type="4_4" _builder_version="3.22.4"][et_pb_accordion open_toggle_text_color="#0c71c3" _builder_version="3.23.3" toggle_font="||||||||" body_font="Raleway||||||||" text_orientation="center" custom_margin="10px||10px"][et_pb_accordion_item title="Source of the problem" open="on" _builder_version="3.23.3" title_text_shadow_horizontal_length="0em" title_text_shadow_vertical_length="0em" title_text_shadow_blur_strength="0em" closed_title_text_shadow_horizontal_length="0em" closed_title_text_shadow_vertical_length="0em" closed_title_text_shadow_blur_strength="0em"]IMO longlist 1992[/et_pb_accordion_item][et_pb_accordion_item title="Topic" open="off" _builder_version="3.23.3" title_text_shadow_horizontal_length="0em" title_text_shadow_vertical_length="0em" title_text_shadow_blur_strength="0em" closed_title_text_shadow_horizontal_length="0em" closed_title_text_shadow_vertical_length="0em" closed_title_text_shadow_blur_strength="0em"]Geometry[/et_pb_accordion_item][et_pb_accordion_item title="Difficulty Level" open="off" _builder_version="3.23.3" title_text_shadow_horizontal_length="0em" title_text_shadow_vertical_length="0em" title_text_shadow_blur_strength="0em" closed_title_text_shadow_horizontal_length="0em" closed_title_text_shadow_vertical_length="0em" closed_title_text_shadow_blur_strength="0em"]Hard[/et_pb_accordion_item][et_pb_accordion_item title="Suggested Book" open="off" _builder_version="3.23.3" title_text_shadow_horizontal_length="0em" title_text_shadow_vertical_length="0em" title_text_shadow_blur_strength="0em" closed_title_text_shadow_horizontal_length="0em" closed_title_text_shadow_vertical_length="0em" closed_title_text_shadow_blur_strength="0em"]Challenge and Thrill of Pre-college Mathematics[/et_pb_accordion_item][/et_pb_accordion][et_pb_text _builder_version="3.22.4" text_font="Raleway|300|||||||" text_text_color="#ffffff" header_font="Raleway|300|||||||" header_text_color="#e2e2e2" background_color="#0c71c3" border_radii="on|5px|5px|5px|5px" box_shadow_style="preset3" custom_margin="48px||48px" custom_padding="20px|20px|20px|20px"]

Start with hints

[/et_pb_text][et_pb_tabs active_tab_background_color="#0c71c3" inactive_tab_background_color="#000000" _builder_version="3.23.3" tab_text_color="#ffffff" tab_font="||||||||" background_color="#ffffff"][et_pb_tab title="Hint 0" _builder_version="3.22.4"]Do you really need a hint? Try it first!

[/et_pb_tab][et_pb_tab title="Hint 1" _builder_version="3.23.3"]Prove that the reflections of H with respect to the sides AB,BC,CA all lie on the circumcircle of ABC.[/et_pb_tab][et_pb_tab title="Hint 2" _builder_version="3.23.3"]Study the reflection of \odot AHB with respect to AB.[/et_pb_tab][et_pb_tab title="Hint 3" _builder_version="3.23.3"]Combining the previous hints, show that A_1,B_1, C_1 are just reflections of O on the sides of ABC.[/et_pb_tab][et_pb_tab title="Hint 4" _builder_version="3.23.3"]

From the last hint, we have BA_1=BO=R=CO=CA_1 where R is the circumradius of ABC. Hence,  BOCA_1 is a rhombus and A_1C||BO. Similarly, BO||AC_1 hence A_1C||AC_1. As CAC_1A_1 is a parallelogram, we also have A_1C_1=AC. We can similarly prove that A_1B_1=AB and B_1C_1=BC. Thus ABC\cong A_1B_1C_1. This implies that it suffices to show that the centres of the two nine-point circles coincide. Remember that the nine-point centre is the midpoint of the line joining the circumcentre and the orthocentre. Claim  H is the circumcentre of A_1B_1C_1.   Proof  Note that A_1H=R (as A_1 is the centre of \odot BHC and \odot BHC is a reflection of \odot ABC. Similarly, B_1H=C_1H=R.     Claim  O is the orthocentre of A_1B_1C_1.   Proof   As A_1 is the reflection of O on BC, A_1O\perp BC. As BC\parallel B_1C_1, A_1O\perp B_1C_1. Similarly, B_1O\perp C_1A_1 and C_1O\perp A_1B_1. Thus O is the orthocentre of A_1B_1C_1.

Thus the centres of the nine-point circles of ABC and A_1B_1C_1 coincide.
