Explore the Back-StoryThere should be no such thing as boring mathematics.

Edsger W. Dijkstra

In one of our previous post, we have discussed on **Mandelbrot Set**. That set is one of the most beautiful piece of art and mystery. At the end of that post, I have said that we can calculate the value of $\pi $ using **Mandelbrot set**. So, today we will be doing exactly that.

Today our main goal is to write a **Julia programming language**. Well, I am using **Julia** as I am learning this new language and it's really great and also, "**Mandelbrot**" and "**Julia**" set are related. So, why not use **Julia language**.

It all started in $1991$. On that year, **Dave Boll** discovered a surprising occurrence of the number $\pi $ while exploring a seemingly unrelated property of the Mandelbrot set. So, let's see.

It all started when **Dave Boll** was trying to see **if the neck of the mandelbrot set** ($c=-0.75+i\cdot 0$) **is infinitely thin or not**. We was trying to find this by taking a number $\epsilon $, which is as small as we want (in simple terms $\epsilon \to 0$) and apply the recurrence relation $z = z^2 + c$ where $c$ is taken as $c = -0.75 + i\cdot \epsilon$.

Now, we see the number of steps it needs to go outside of the mandelbrot set.

$\epsilon $ | No if Iteration needed to go out |

1.0 | 3 |

0.1 | 33 |

0.01 | 315 |

0.001 | 3143 |

0.0001 | 31417 |

0.00001 | 314160 |

0.000001 | 3141593 |

What the !!... It was exactly the reaction of **Boll**, when he first saw this. Somehow the digits of $\pi $ was generated.

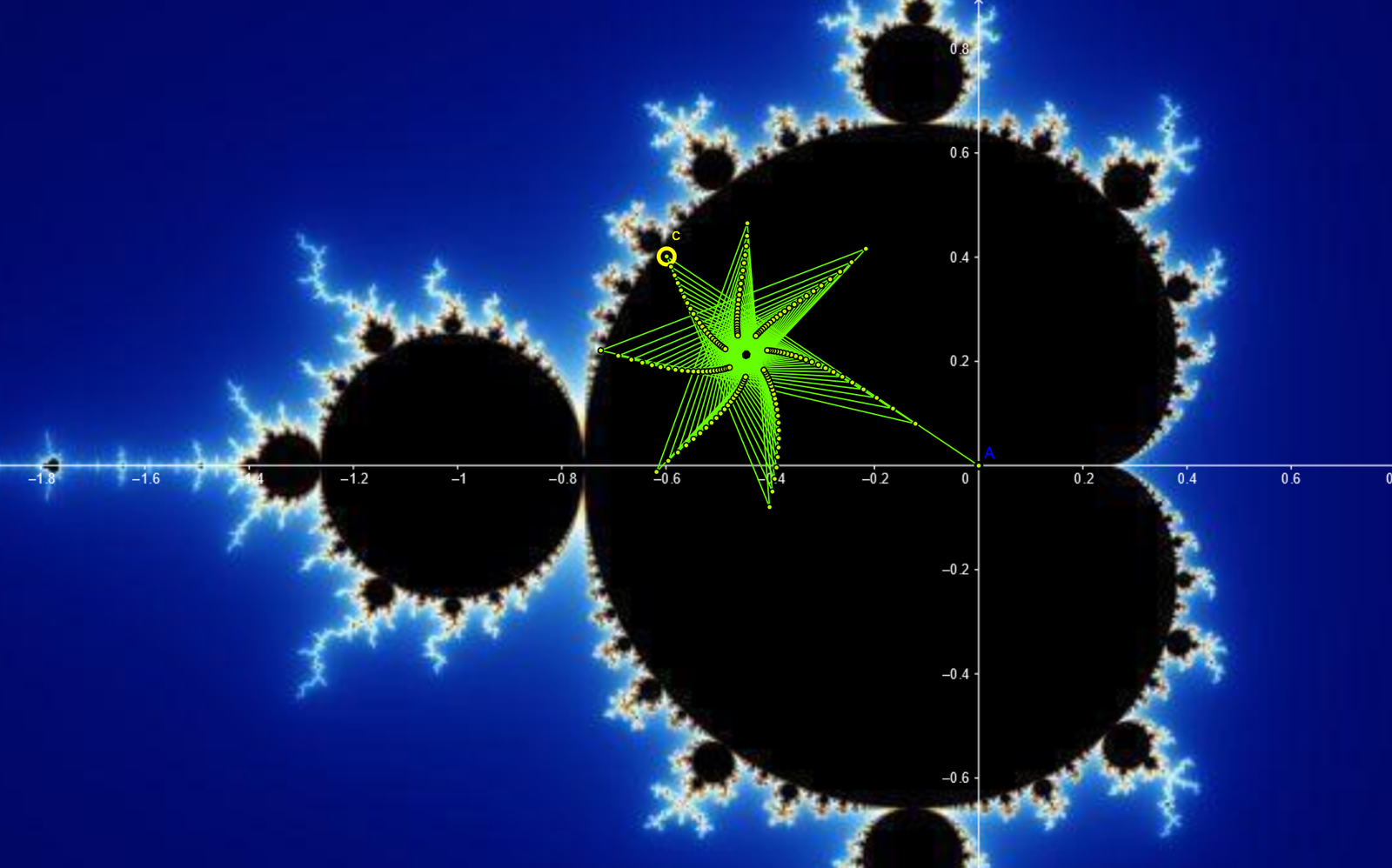

Let's take an example to see what is happening. Let's start with $c = -0.75 + \epsilon i = -0.75 + i $. Now, we apply the algorithm of Mandelbrot set. This is shown in the image below.

This picture clearly shows the algorithm. After taking the $c$ value, we apply the iteration. That iteration has $3$ values of $z$ ($z_0$,$z_1$,$z_2$) before the value of $z$ goes outside of the **mandelbrot set**. And as you have guessed the number is the first digit of $\pi $.

As we decrease the number $\epsilon $, the number of steps needed by the $z$ to go outside the **mandelbrot set** increases as seen in the table. In the limit $\epsilon \to 0$, the number needed will generate the exact value of $\pi $ (This value actually goes to infinity).

It doesn't just work for $-0.75 + \epsilon i$ but also works for $(0.25 + \epsilon )+ 0i $, $-0.75 - i\epsilon $, $\cdots $

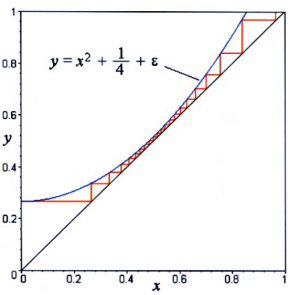

The same for $0.25+\epsilon +0i$ can be visualized using a parabola. **This can also be compared with a reflective system formed by a parabolic and straight mirror**. The number of reflection will generate the value of $\pi $.

The proof of this a bit technical. If you want a proof read this - Proof of this Phenomenon.

The code is very simple to write. Remember in Julia the imaginary $i$ is represented by $im$.

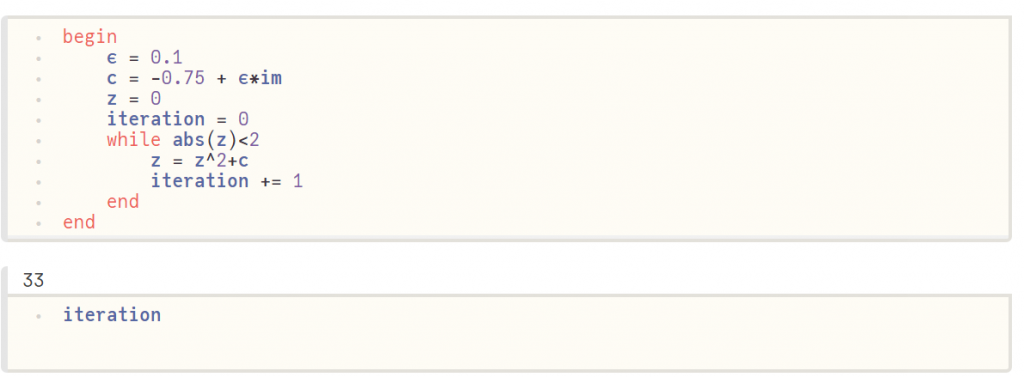

The code for the case $\epsilon = 0.1$ is shown below.

As you can see it's so easy and it is giving me $33$. And if you have noticed... in Julia we can use symbols like "$\epsilon $".

Now, what we can do.. we can make a function from this and let's also use a function called **setprecision** to get high precision to decimal values to get many digits of $\pi $. We will also be using **BigInt** and **BigFloat** to handle high precision.

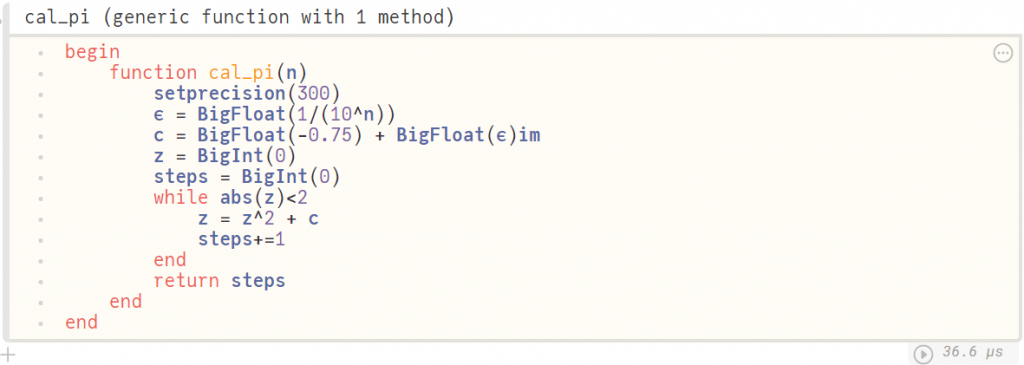

So, The final code is:

This function takes $n$, which is the number of digits you want in $\pi$. Now, let's see some of it's output.

Beautiful!!.. Isn't it?

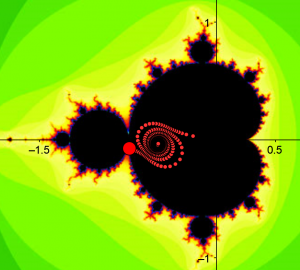

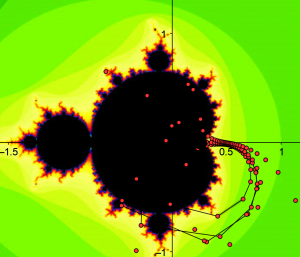

We can visually see the path like shown below:

This is all for today. I hope you learnt something new and have grown a bit.
