Try this beautiful problem from Geometry based on Area of a Triangle Using similarity

Area of Triangle – AMC-8, 2018 – Problem 20


In $\triangle ABC $ , a point E is on AB with AE = 1 and EB=2.Point D is on AC so that DE $\parallel$ BC and point F is on BC so that EF $\parallel$ AC.

What is the ratio of the area of quad. CDEF to the area of $\triangle ABC$?

  • $\frac{2}{3}$
  • $\frac{4}{9}$
  • $\frac{3}{5}$

Key Concepts


Geometry

Area

similarity

Check the Answer


But try the problem first…

Answer:$\frac{4}{9}$

Source
Suggested Reading

AMC-8, 2018 problem 20

Pre College Mathematics

Try with Hints


First hint

$\triangle ADE$ $\sim$ $\triangle ABC$

Can you now finish the problem ……….

Second Hint

$\triangle BEF$ $\sim$ $\triangle ABC$

can you finish the problem……..

Final Step

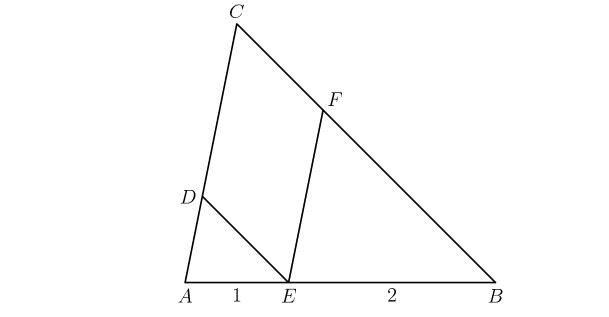

Area of triangle- figure

Since $\triangle ADE$$\sim$ $\triangle ABC$

$\frac{ \text {area of} \triangle ADE}{ \text {area of} \triangle ABC}$=$\frac{AE^2}{AB^2}$

i.e $\frac{\text{area of} \triangle ADE}{\text{area of} \triangle ABC}$ =$\frac{(1)^2}{(3)^2}$=$\frac{1}{9}$

Again $\triangle BEF$ $\sim$ $\triangle ABC$

Therefore $\frac{ \text {area of} \triangle BEF}{ \text {area of} \triangle ABC}$=$\frac{BE^2}{AB^2}$

i.e $\frac{ \text {area of} \triangle BEF}{ \text {area of} \triangle ABC}$ =$\frac{(2)^2}{(3)^2}$=$\frac{4}{9}$

Therefore Area of quad. CDEF =$\frac {4}{9}$ of area $\triangle ABC$

i.e The ratio of the area of quad.CDEF to the area of $\triangle ABC$ is $\frac{4}{9}$
